​COLT® Government 1911 with given specifications related to GRAVES 1911 damper motor type upgrades

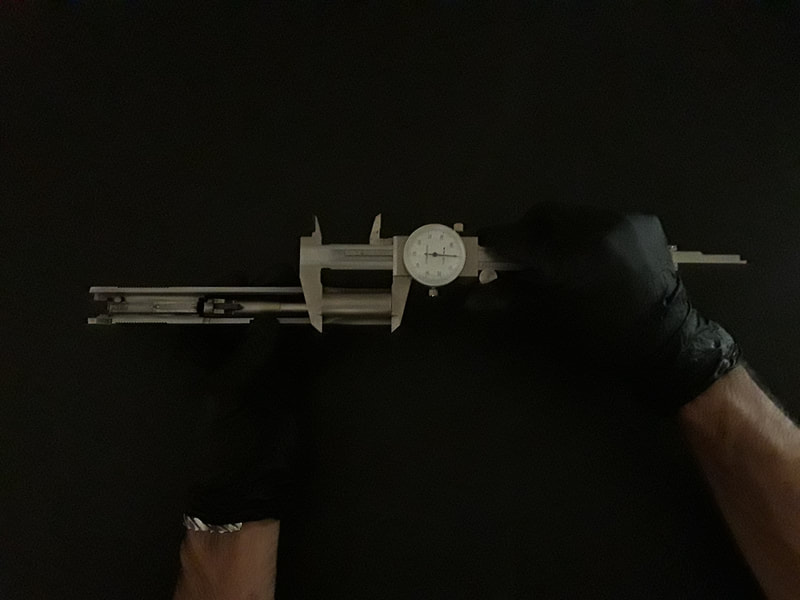

• Nominal barrel shroud length: 1.700” (Figure A)

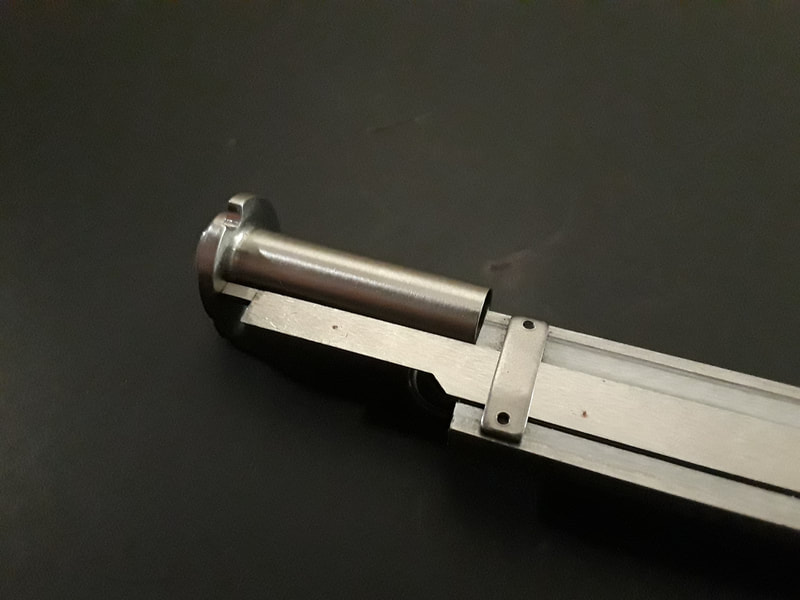

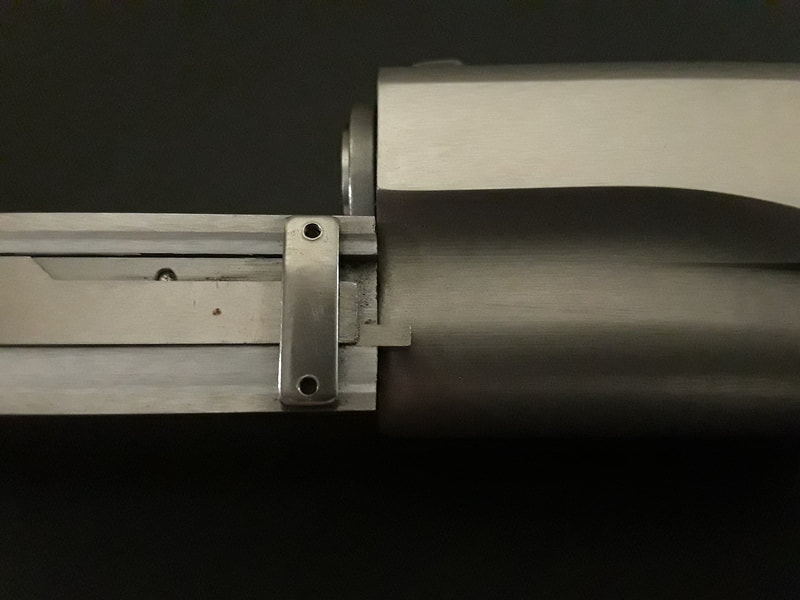

• Nominal plug head depth: .100” (below the barrel shroud deck; Figure B)
• Nominal maximum solid damper height: 1.600” (@maximum compression; Figure C)

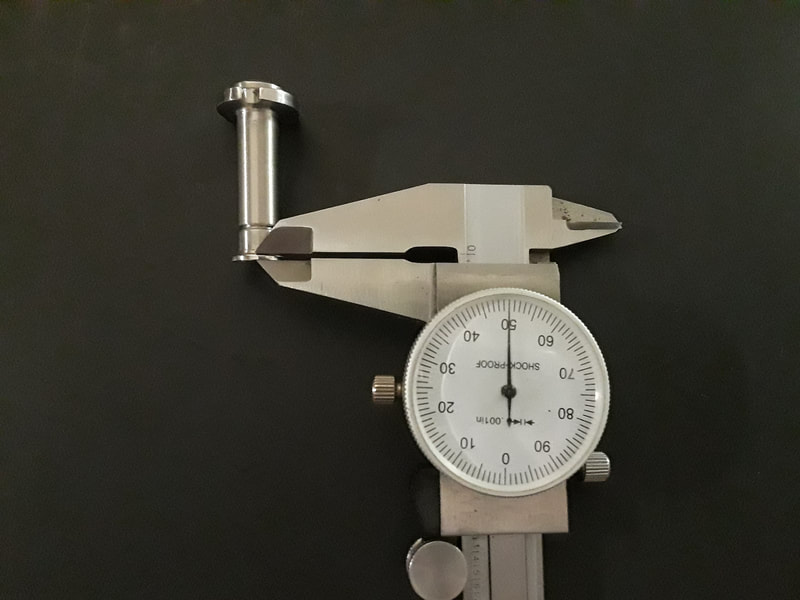

• Nominal spring retainer thickness: .050” (same for all G1 Series 1911 systems; Figure D)

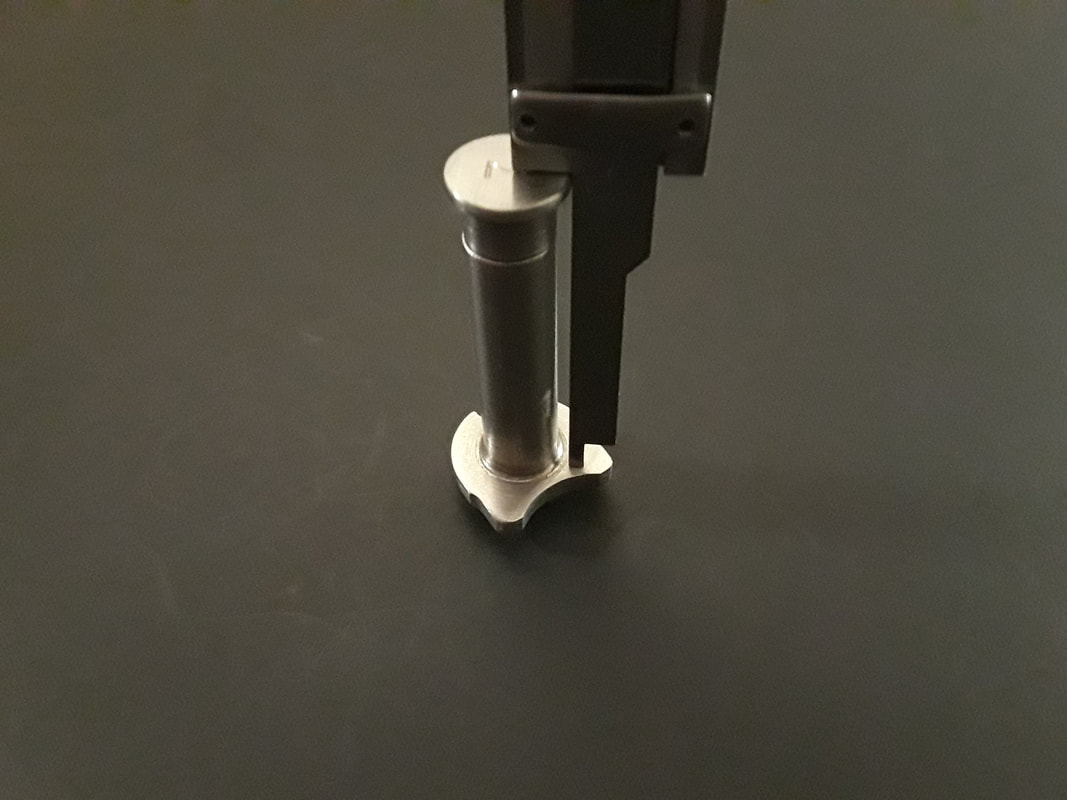

• Nominal maximum guide rod length: 1.550" (Figure E)
• Nominal maximum solid recoil spring height: 1.550”​
• Nominal recoil spring wire diameter: .047”

Click image to enlarge

Figure A

Figure B

Figure C

Figure D

Figure E

​​Other 1911 clones
In general using the barrel shroud length of any given 1911 and subtracting the plug head depth will provide the maximum solid damper height. The maximum solid damper height of the 1911 can be compared to the specifications below as an aid in determining product selection and applicability. Maximum plug spacer height is the thickness of a spacer required for maximum compression when used with a stock or COLT® OEM recoil spring plug. The plug spacer is installed between the recoil spring plug's internal face and the damper's recoil spring retainer face.

• ​ The plug spacer has a nominal maximum diameter of .450”

​

---

1911 damper motor system fitment related specifications

GRAVES 1911 MINI MAX  ("Drop in part") SPECIAL ORDER ONLY

• Nominal maximum solid damper height: 1.550”
• Nominal maximum plug spacer height: .050” (@maximum compression)
• Nominal maximum solid spring height: 1.500”
• Nominal maximum guide rod length: 1.200”
• Nominal maximum recoil spring coil count: 31 coils
• Standard OEM recoil spring coil count: 25 coils

GRAVES 1911 V MAX  ("Drop in part")

• Nominal maximum solid damper height: 1.450”
• Nominal maximum plug spacer height: .150” (@maximum compression)
• Nominal maximum solid spring height: 1.400”
• Nominal maximum guide rod length: 1.200”
• Nominal maximum recoil spring coil count: 29 coils
• Standard OEM recoil spring coil count: 25 coils

GRAVES 1911 V MAX HARD FIT (may require fitting) SPECIAL ORDER ONLY

• Nominal maximum solid damper height: 1.600”
• Nominal maximum plug spacer height: .000" (@maximum compression)
• Nominal maximum solid spring height: 1.550"
• Nominal maximum guide rod length: 1.200”
• Nominal maximum recoil spring coil count: 33 coils
• Standard OEM recoil spring coil count: 25 coils

.460 ROWLAND® V2 RECOIL DAMPER ("Drop in part")

• ​Nominal maximum solid damper height: 1.500”
• Nominal maximum plug spacer height: .100" (@maximum compression)
• Nominal maximum solid spring height: 1.450"
• Nominal maximum guide rod length: 1.300”
• Nominal maximum recoil spring coil count: 30 coils
• Standard OEM recoil spring coil count: 25 coils

​
