GRAVES 1911 V MAX system

Technology for the world's most powerful 1911 handguns

​​​


- controlled slide opening
- controlled slide dwell
- controlled slide closing
The GRAVES 1911 V MAX is designed for high performance 1911 handgun applications. This system is a compact recoil spring guide rod assembly with an integrated energy rejecting motion controlling air braking function.
  • Increase handgun durability and mechanical integrity
  • Decrease recoil and mechanical shock energy
  • Increase functionality, usability, and controllability
Installation for COLT® 1911 with .460 ROWLAND® conversion
*Always install with "closed coil" of a recoil spring facing the front of a handgun (Install with 1911 V MAX piston seated within a "closed coil" end of recoil spring)

  • Fits COLT® 1911 (full size) & clones
  • Useful with standard or extra energy springs
  • Decreased ejection velocity
  • Decreased slide stop impact
  • Increased slide reversal duration
  • Decreased slide return velocity
  • Decreased slide return impact

​

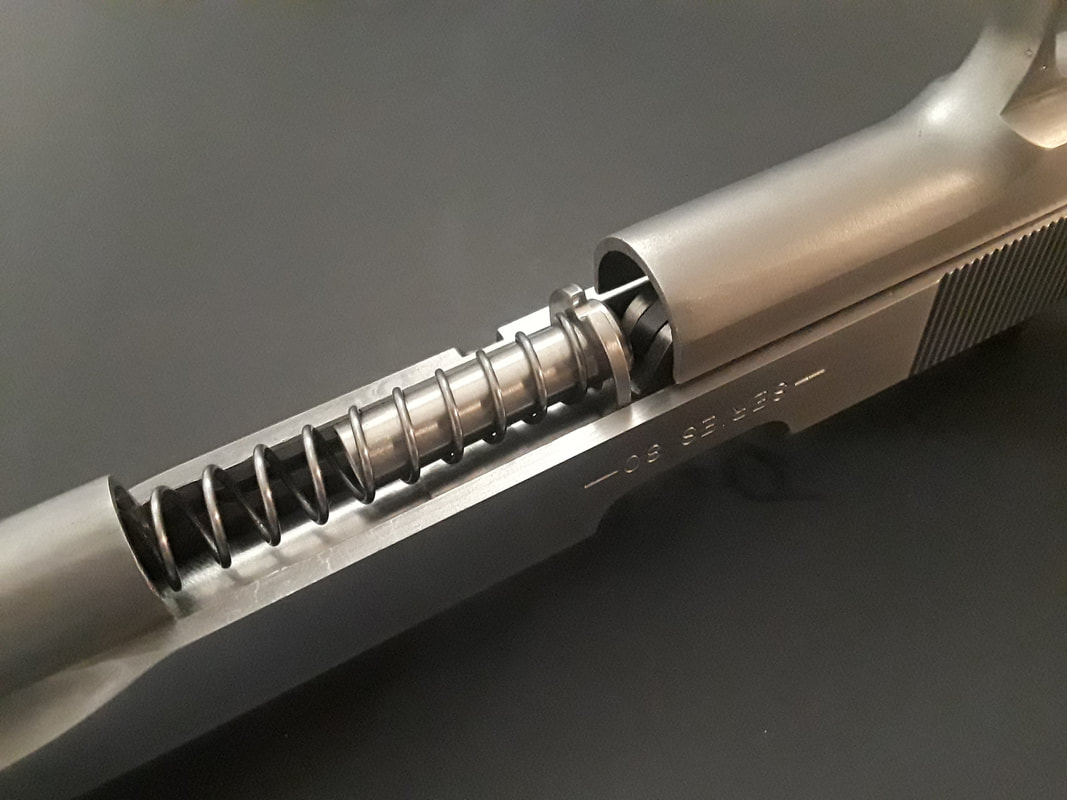

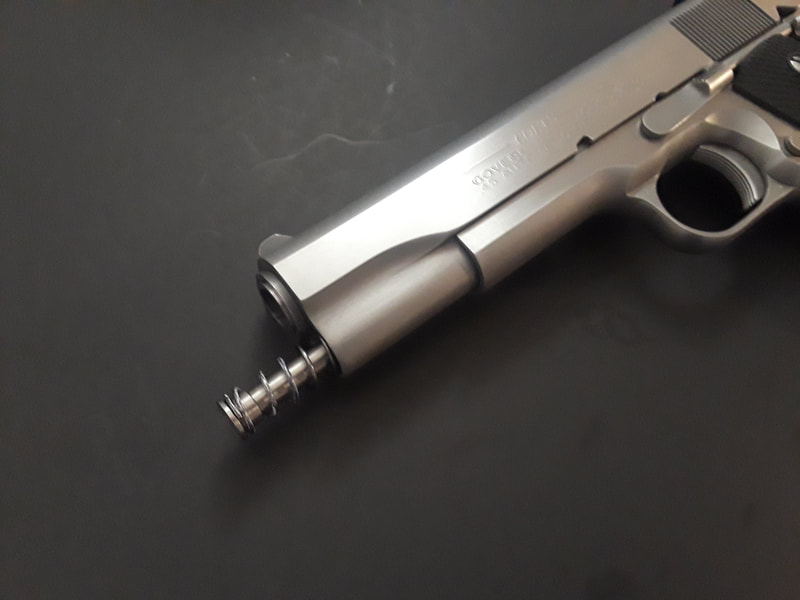

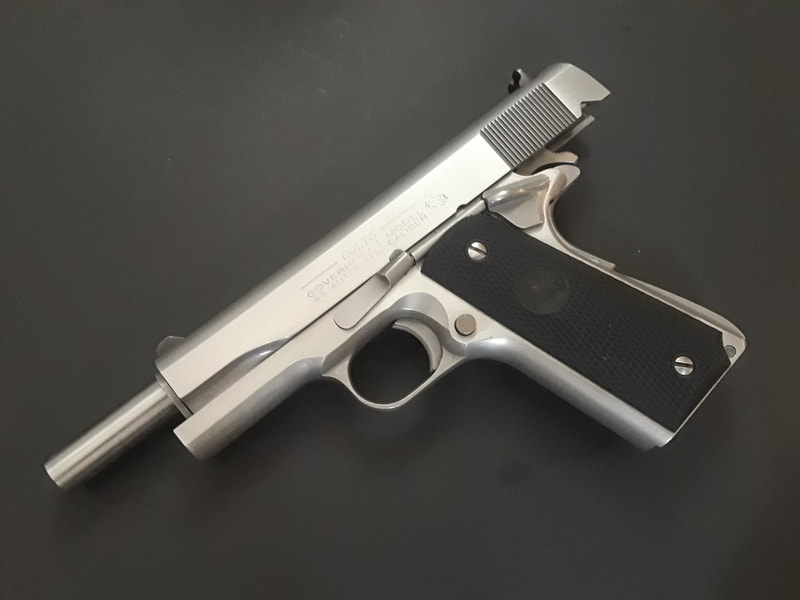

​COLT 1911 Government Model installation photos
(click to enlarge images)
Damper motor specifications
Volume: .074 cubic inches
Approximate compression ratio: 11:1
Product Information Notice
1911_v_max_pin.pdf
File Size: 177 kb
File Type: pdf
Download File

Maintenance
Clean and inspect after initial 3 to 100 rounds. Clean and inspect periodically or as needed. Clean with mineral spirits. Lubricate with light oil.
​
​GRAVES 1911 V MAX is a closed cylinder/cylinder head or blind cylinder style of construction for use with high powered high performance handguns therefore it will generally perform best with a clean, and lightly lubricated piston, and cylinder assembly.


Fitment & Metrics information
This product may generally be used with any compatible 1911 having a nominal barrel shroud length between 1.500" and 1.750". This product may be configured for maximum performance and compression using a recoil spring plug "spacer" between the piston's recoil spring retainer face, and the inside face of the recoil spring plug. To learn more about Fitment & Metrics click here.
​welcome to recoil-technology-systems.com
3 cycle, 2 stroke technology
If you want to minimize destructive mechanical shocks or impacts while maximizing mechanical integrity and functionality, a GRAVES RTS product should probably be at the very core of your firearm. ​
